A 200×20×5 mm stainless steel strap hinge often works well for marine hatches.It works for cockpit storage lockers, outdoor cabinets, equipment boxes and closets too. That said, just going by measurements won’t ensure it fits perfectly. Many factors impact overall performance. These include door weight, panel width, and the mounting material. Exposure conditions and your choice of fasteners matter too. This guide shows where this specific hinge functions best. It also highlights key details buyers need to verify before they place an order.
What Do the 200×20×5 mm Dimensions Mean?
Every single measurement changes how the hinge attaches to the panel. These numbers also determine how force moves into the mounting surface. Therefore, you must look at all these dimensions together.
How Does the 200 mm Length Affect Support?
A 200 mm length provides a rather long mounting footprint. This extended size spreads force across a wider area of a door or hatch. It does this much better than a small butt hinge. Furthermore, this design works perfectly when a visible surface mount is fine for your project.
However, a longer hinge never guarantees a high load capacity by itself. Many other details change how it performs. Door width and total weight play huge roles. You must also consider hinge position, fasteners, and the base material strength. And the quantity of hinges you install makes a big difference too.
Why Does The 20mm Width and 5mm Thickness Even Make A Difference?
A 20 mm width creates a very slim profile. This makes it ideal for narrow frames, tight cabinet edges, and small storage openings. Meanwhile, the 5 mm thickness gives the hinge a highly durable shape. Even so, your installation must leave enough room to allow smooth daily movement.

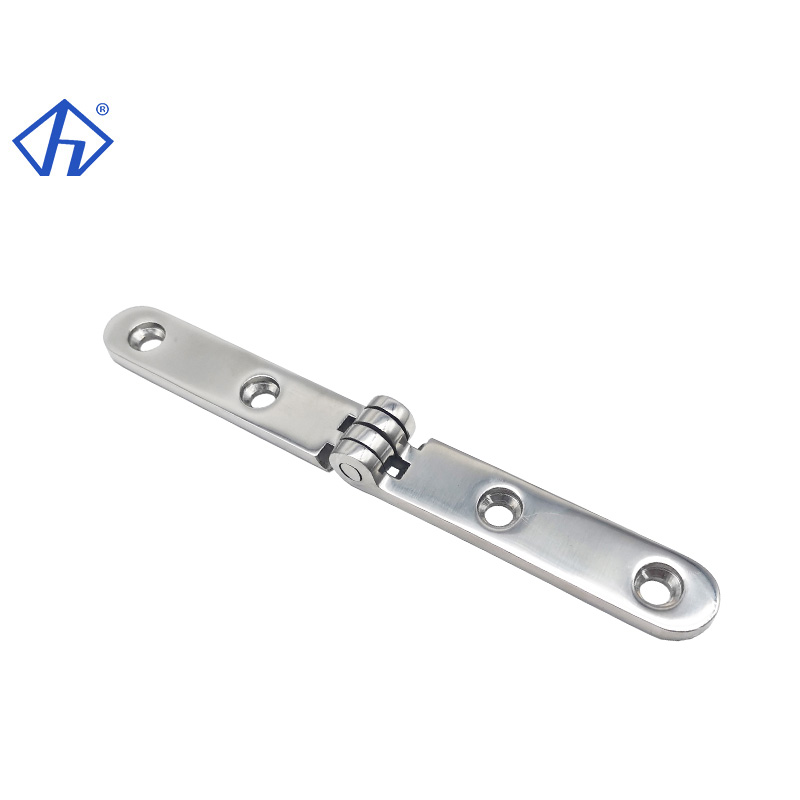

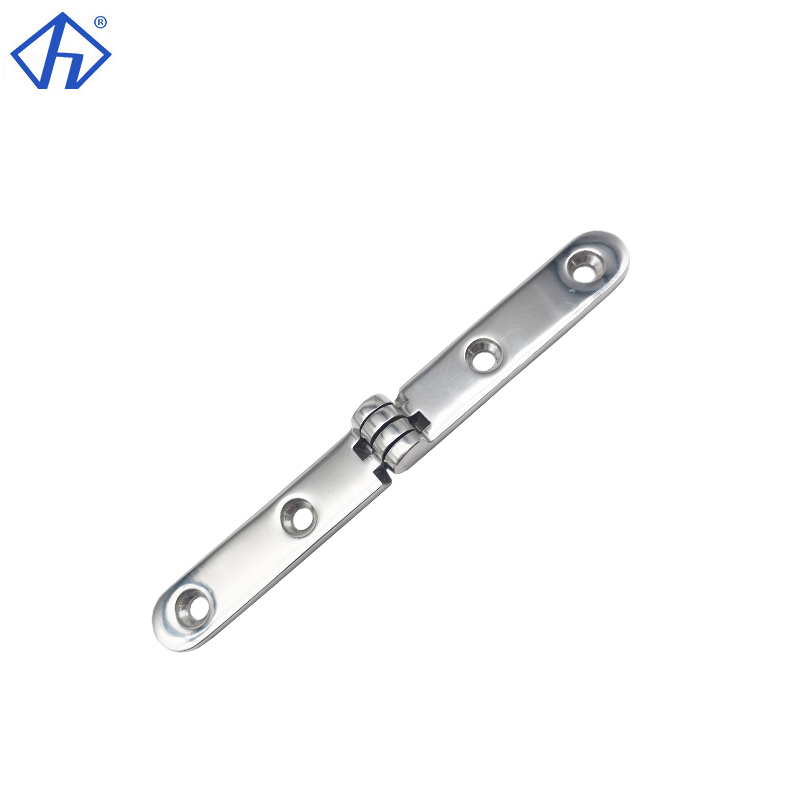

Hiever’s model features a reliable four-point fixing design. It’s offered in marine-grade 304 or 316 stainless steel, and both have that nice bright polished finish.Common uses include deck doors, cabinets, and railings. People also use them on wardrobes, docks, and cockpit storage lockers.
Which Applications Can This Strap Hinge Suit?
This model proves highly practical for specific needs. It shines when you want strong corrosion resistance and a long fixing area. Visible mounting is another key feature. Many standard building projects match these exact requirements.

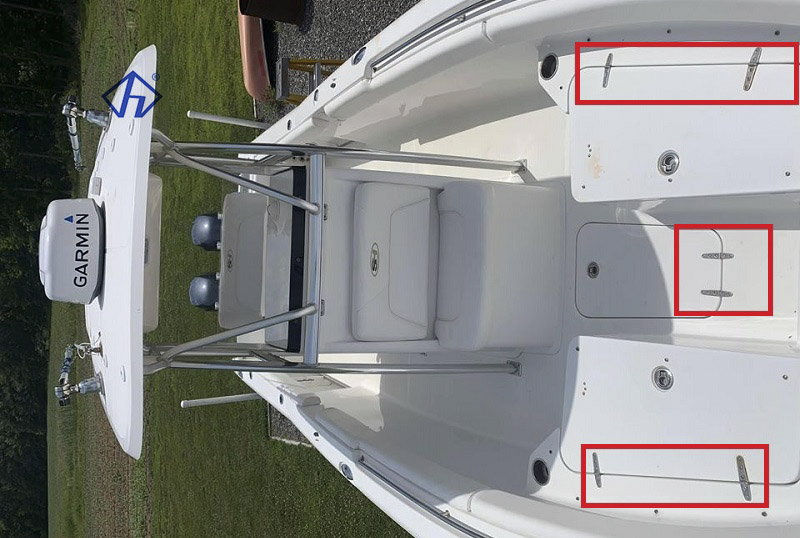

Can It Be Used for Boat Hatches and Cockpit Lockers?
Yes, it works great for these uses. However, the hatch weight and the main supporting structure must be appropriate. Sometimes the hinge faces saltwater or regular sea-spray. If it’s going to be exposed to really harsh conditions, 316 is definitely your best bet.
The hinge and fasteners must work together with the backing support. The sealant and hatch panel are also part of this single system. This teamwork is deeply important on boats. Constant vibration creates strong dynamic forces over time.
Is It Suitable for Outdoor or Indoor Cabinets?
This hinge easily fits garden storage units and utility cabinets. It also works on equipment boxes, wardrobes, and display units. You can even use it on decorative furniture. The shiny polished surface delivers a very clean look. At the same time, the narrow shape fits into tightly limited mounting areas.
When building for outdoor use, you must avoid trapping water under the hinge leaf. Thin indoor panels require extra care. You should consider using special inserts or through-bolts. Added reinforcement helps ensure that all four fixing points stay completely secure.
What Should You Check Before Selecting This Hinge?
Looking at the available mounting space is just the first step. You need to review the entire door and frame. You must also check your chosen fastening method and the local service environment.
How Big and How Heavy Is The Door Anyway?
Start by measuring its height, width and thickness properly.You must find out the actual weight too. A wide door creates much greater leverage. This happens even if the door itself is not very heavy. Finally, confirm the exact number and position of the hinges.
Never guess the safe working load based purely on the 5 mm thickness. Heavy panels need more careful planning. The same rule applies to equipment that opens and closes frequently. Always request proper technical confirmation for these tough situations.
Is The Mounting Surface Strong Enough?
Different materials need completely different fixing methods. It works on wood, fiberglass, aluminum, steel and newer composite boards alike. Just make sure you double-check the hole spacing and proper edge clearance every time.You must also verify the fastener length and check for clear access behind the mounting area.
Both hinge leaves must share the exact same axis during installation. Poor alignment leads to serious problems. It can cause tight binding, uneven metal wear, and loud noises. Over time, bad alignment will also create loose fasteners.
Wondering Whether to Go With 304 or 316 Stainless Steel?
304 holds up perfectly well for regular indoor cabinets and furniture. It is also good for well-protected outdoor applications. However, boats and coastal projects demand more protection. For wet areas or places exposed to salt, 316 is almost always the stronger choice.
Material grade is not the only factor for rust prevention. Good water drainage and regular cleaning matter greatly. Fastener compatibility is another major issue. Finally, direct contact with other types of metals will strongly influence long-term corrosion resistance.
When Should You Request a Different or Custom Size?
The 200×20×5 mm model is highly versatile. Even so, it simply cannot fit every single project. You might need a totally different design sometimes. This happens when the standard dimensions conflict with your door structure or block its normal movement.
What Signs Suggest That It Is Not Suitable?
You should choose another model if space is too tight for the 200 mm length. The same applies if the fixing holes sit dangerously close to a panel edge. Sometimes the hinge might block the door from opening fully. In other cases, the thin panel cannot safely support the fasteners. For these situations, concealed or offset hinges might work better. Removable-pin or restricted-angle hinges could also suit your specific application much better.
What Other Sizes Can Hiever Supply?
Hiever also produces several other various stainless industrial hinge options. They’ve got these long hinge sizes available: 140×38mm, 103×27mm, 152×30mm and 126×40mm. Custom dimensions are quite helpful for OEM buyers. A custom size makes it easy to match an existing hole pattern. It also helps fit a unique enclosure, hatch, or current product range.
Why Choose Yantai Hiever Metalworks as a 316 Stainless Hinge Supplier?
A truly dependable supplier must offer highly consistent materials. They need to provide accurate dimensions every time. They should also support both standard and custom orders. These specific capabilities matter deeply to professional boatbuilders and distributors. Cabinet manufacturers and industrial buyers value these traits just as much.
What Can Hiever Provide?
Hiever Metalworks Co., Ltd. brings more than 20 years of solid marine hardware experience to the table. They offer over 300 standard products. The factory supports strict material assurance. They also handle OEM and ODM production. On top of that, they can make custom parts straight from your drawings or actual physical samples. Right now, they’re shipping their products to customers in around 30 countries worldwide.
Customers can freely discuss exact dimensions and specific hole positions. You can also talk about material grade, surface finish, and product samples. They handle packaging details and large bulk orders too. All these services make Hiever a highly practical 316 stainless hinge supplier. They are ready for both standard tasks and fully customized projects.
Conclusion
A 200×20×5 mm stainless steel strap hinge easily suits boat lockers and deck doors. It also fits outdoor cabinets, wardrobes, and equipment enclosures nicely. It features a long profile and a very slim width. The design includes a secure four-point fixing system. Go with polished 304 or 316 stainless steel, with all these benefits, this surface mount style is really versatile for all sorts of installations.
Before you place an order, you must confirm the total door weight. Check the mounting strength and the planned hole layout. Always review the working environment and your specific corrosion requirements. Some projects involve very heavy or highly unusual applications. For those jobs, you should send Hiever a technical drawing or a sample. You can also send them full project details for a professional review.
FAQs
Is a 200 mm Strap Hinge Suitable for a Heavy Door?
It is quite possible, but size alone cannot confirm the safe load. You must review the door width and total weight. You also need to look at the hinge quantity and your chosen fasteners. The mounting material and daily movement patterns require careful checking too.
Is 316 Always a Step Up From 304 No Matter The Scenario?
Guys on the job mostly choose 316 for marine equipment or coastal installations. It is also best for chloride-rich environments. However, indoor or protected applications are different. For those simpler spaces, 304 is often much more economical. It remains fully suitable for those lighter tasks.
Can Hiever Customize the Hole Pattern or Hinge Size?
Yes, they certainly can. Hiever gladly accepts OEM and ODM enquiries. They can work directly from your technical drawings or physical samples. You just need to provide the exact dimensions and hole spacing. Also, share the material grade, desired finish, and the final application. Do not forget to include your expected order quantity.
