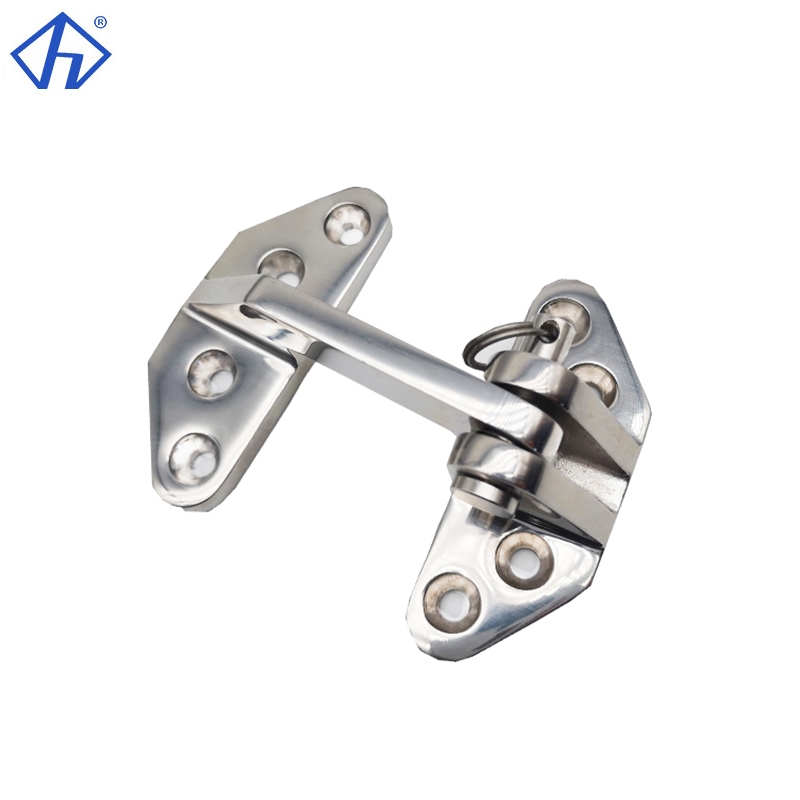

Trend Toward Modular Shipbuilding: Heavy-Duty Hinges in Automated Hatch Systems

The shift towards modular building and greater automation in new shipbuilding has brought Heavy-Duty Stainless Steel Hinges to the forefront, particularly for use in Automated Hatch Systems. The standard hinge is no longer suitable for marine use and Hinge Specialists have had to design and manufacture Heavy-Duty Stainless Steel Hinges that can work in perfect harmony with other structural modules, actuators and smart control systems.

We can supply marine stainless steel hinges, precision casting hinge and stamping hinge made. We have a wide selection of hinges for modular shipbuilding. Large cargo vessels, recreational vehicle,offshore platforms, luxury yachts and more, are equipped with sturdy connections made by Hiever hinges, designed to withstand saltwater, vibration and mechanical stress for long periods of time.

How Is Modular Shipbuilding Reshaping Modern Marine Engineering?

Key Principles Behind Modular Ship Construction

Prefabrication and parallel construction are the cornerstones of modular shipbuilding. The entire ship structure is assembled from prefabricated modules, such as hull sections or a hatch automation system, which are made separately. Better quality and precise measurements are ensured by this more effective production method. Additionally, it also shortens the whole production time.

Advantages of Modular Design in Automated Systems

Within a modular framework, interfaces can be standardized, which simplifies the process of installing and maintains automation solutions. For example, automated hatch systems can be delivered pre-assembled with hydraulic actuators and sensors. Also, hatch cover automation systems can be easily equipped with smart monitoring or even with predictive maintenance solutions later on.

Importance of Heavy-Duty Hinges for Automated Hatch Systems.

Heavy-duty stainless steel hinges are the mechanical core of automated hatch assemblies. Hinge sections have to carry heavy loads whilst maintaining exact alignment under changing marine conditions.

Structural Demands on Marine Hinges

Hinges on a marine vessel are subject to repeated high impact forces, such as from waves, as well as torsion from loading and unloading of cargo. These parts are also subject to corrosion from the saltwater environment. Even slight amount of wear can cause problem with the alignment of actuators or cause leakage of seals. Thus, the geometry and the material selection of a hinge part has direct correlation to safety of the vessel in operation.

Performance Standards for Heavy-Duty Hinges

Major performance indicators include bearing strength, fatigue resistance, corrosion resistance, welding integrity and automatic system compatibility. Hinges used for automated hatches shall integrate seamlessly with hydraulic and electromechanical actuators,to ensure low friction during movement cycles.

What Does Impact Load Resistance Research Reveal About Hinge Performance?

The capacity of a hinge to absorb energy from sudden shock or cyclic loading at sea is determined by the impact load resistance.

Experimental Methods in Load Resistance Analysis

Finite Element Analysis (FEA) provides a virtual investigation by calculating stress in any part of the lock during operation. By running for a longer period of time, we can also gain insight into fatigue. In our test lab we can replicate millions of opening and closing cycles to test the endurance of a lock. A salt spray test simulates corrosion in a controlled test set up to accelerate marine corrosion in a short period of time.

Findings from Recent Heavy-Duty Hinge Studies

Study and testing have shown that optimum hinge design can reduce local stress concentrations at pivot points whilst the distribution of load in multiple axes will increase the service life of the hinge. In addition strengthened welds to all impact loaded joints will also extend the life of hinges on board ships that are continuously operating in poor weather conditions.

Which One Is Better Between SS316 And SS304?

The choice of material for hinges is the key when using them in marine environments.

Why SS316 Is The Best Choice for Marine Applications?

SS316’s molybdenum composition enhances the corrosion resistance in chlorides, a common corrosive in seawater. High-quality, long lasting SS316 Hiever marine grade cabinet door hinges are easily fitted for use in salt-alkali soil, lakes, ocean, swamps and other applications. The superior fatigue and thermal resistance of SS316 makes it particularly suitable for offshore platforms and naval ships and boats where exposure to the most extreme environments occur.

How Do Stainless Steel Boat Hinges Boost Long-Term Reliability?

Stainless steel boat hinges keep their mechanical performance for years. The hinges not only stand resistant to corrosion, but also with great tensile strength.

Merits of The Stainless Steel Hinges

• Anti-Corrosion Performance: To prevent rust, chromium forms a protective oxide layer.
• High Structural Strength:Sturdy hatch panels are supported without bending.
  •Fatigue Resistance: Can tolerate repeated loads without developing cracks.
  • Thermal Stability: Consistently operates at different temperatures.
• Low Maintenance: Compared to coated carbon steels, it requires less maintenance.
• Low Maintenance:Requires minimal servicing compared with coated carbon steels.

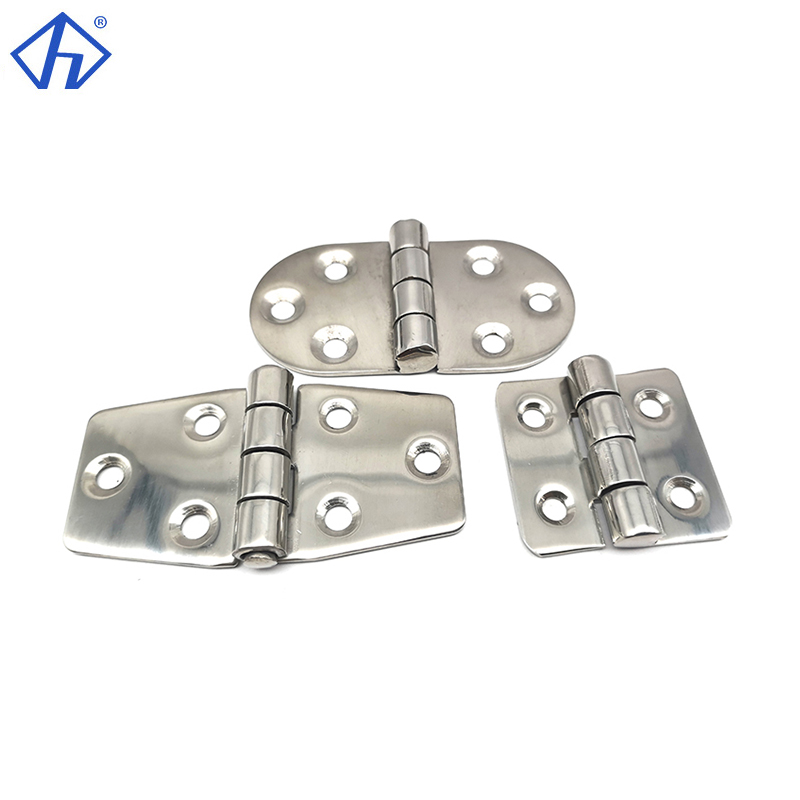

Hiever Metalworks Stainless Steel Stamped Butt Hinges are precision-made from stainless steel to ensure excellent resistance to corrosion. Years of exposure to seawater splashes and UV radiation, the hinges will remain reliable.

Typical Failure Modes

Failure modes include: corrosion from wrong material selection; fatigue cracking around welds; installation errors resulting in unsymmetrical stress; hinge seal failure from hinge deformation; and excessive wear on pivot pins due to vibration.

Preventive Measures

Using SS316 materials, periodic inspections, correct alignment during assembly, regular lubrication of moving parts and quality components from certified marine hardware manufacturers, extend the service life.

How Is Automation Changing Marine Hinge Design?

Increased precision in terms of higher tolerances in hinge parts as well as more sensor integration in the hinge area are required for automated use.

Integration with Smart Control Systems

Modern automated hatches are equipped with synchronized hydraulic cylinders which are monitored by sensors. The torque as well as the position of the hatch is recorded in real time by the sensors. Thus, the hinge of the hatch has to follow a precise path of movement without any play or backlash of the hinge, since otherwise it could affect the control program.

Design Adaptations Driven by Automation

Automation trends for marine hatch covers, such as automation, emphasize smaller cover designs to allow for more space on a ship as well as design modifications to allow for improved water sealing. A number of hinge designs have been created that are easily disassembled allowing for a single part to be changed as opposed to having to remove an entire hatch system. This design feature is a big advantage for a large number of vessels during the maintenance cycle.

How to Choose the Right Heavy-Duty Marine Hinge?

When select hardware, engineers should consider the required operational loads: environmental exposure levels,the welding and bolting styles, opening angle to meet hatch geometry, the compatibility of the automation with the chosen actuators or sensors, and operating space for maintenance.

Why Choose Yantai Hiever Metalworks Co., Ltd?

As the experienced supplier for the life long period of the vessel, it not only can supply high quality products, also can make sure the related system works well. Yantai Hiever Metalworks Co., Ltd is a experienced manufacturer, mainly produce high quality stainless steel material precise manufacturing boat hinges. Those marine grade boat hinges are suitable for working in very harsh marine conditions.

Manufacturing Expertise

Our manufacturing processes include the use of CNC machining to produce accurate dimensions, and investment casting to produce components with dense internal structures with no porosity. We can offer a variety of models and sizes to provide heavy duty connections for tanks and industrial plant.

Industry Applications

Hiever’s stainless steel heavy-duty hinges are used on a wide range of applications from cargo ships to offshore engineering platforms, from naval installations to yacht decks, from industrial enclosures to modular shipbuilding modules that require high loads in harsh corrosive environments.

Quality Assurance

An extreme quality control process is in place to test raw materials on receipt by means of spectrometric analysis, and subsequent surface finishing by means of methods such as mirror polishing or passivation to increase the corrosion resistance. Their OEM/ODM production model is flexible enough to meet specific needs of automation in modern shipbuilding yards, through customized production.

What Are the Future Directions for Impact Load Resistance Research?

New research merges progress in materials science and monitoring technology to achieve more precise lifespan of individual components.

New Technological Development Trends

• Composite materials with a blend of properties: Combining the durability of metals with lightweight composite materials to reduce weight without sacrificing strength.

• Monitoring with artificial intelligence: Embedded sensors analyze real-time stress patterns to develop predictive maintenance plans.

• 3D printing manufacturing: Optimizing hinge geometries through 3D printing to reduce weight while maintaining structural integrity.

• Intelligent marine hardware: Integrating electronic devices to enable self-diagnosis and reporting of wear and tear.

• Ultra-lightweight structural design: Optimizing material usage through calculations to reduce material consumption while maintaining adequate safety under impact loads.

Conclusion

Heavy-duty stainless steel hinges bring together mechanical engineering of the highest precision with the digital automation of modern shipbuilding in a modular format. These extremely robust hinges are able to withstand any impact loading, and are corrosion-proof, making them ideal for use in modern ship construction. The latest advances in metallurgy, such as the use of the high-quality SS316 alloy, combined with perfect manufacturing by companies such as Yantai Hiever Metalworks Co., Ltd. are enabling the marine industry to develop ever more efficient, highly automated ship systems for the future.

FAQs

What are the key selection parameters for hinges on a modular ship design, such as a offshore floatel or accommodation vessel?

Load capacity, corrosion resistance (higher resistance with SS316), fatigue life under cyclic loading, actuator compatibility with proposed automation systems, mounting configuration flexibility and access for maintenance.

SS316 is the preferred grade for marine hinges as it has greater resistance to corrosion from chlorides than SS304 and also greater fatigue strength for use in offshore situations.

What does impact load testing do for marine hinge reliability?

It determines potential failure points by testing the hinge to simulate various phases of sea operation allowing for design modification of hinge geometry or weld procedure prior to sea exposure.

Heavy-duty marine hinges for automated hatch systems can be customized to work with hydraulic actuators or smart sensors in modular shipbuilding automation systems. We at Yantai Hiever Metalworks can supply you with customized marine hinges.

How long do stainless steel marine hinges typically serve?

With proper maintenance practices—including lubrication schedules and inspection intervals—marine-grade SS316 hinges can perform reliably over many years，even under constant seawater contact and vibrational pressure.
